Where Light Sculpts Dreams:The Artisan’s Photonic Chisel.

1. Material Empathy:Robotic arms sense sheet variations through Intelligent-vision, self- adjusting power in 3ms—crafting perfection even on imperfect canvases.
2. Tool Choreography:Swap cutting for welding/cleaning in 7 seconds—like a symphony conductor changing instruments, unlocking multi-process artistry.
3. Liberated Workspaces:Cut vertically, overhead, or in tight corners—freeing factories from concrete chains, reclaiming 45% space for creativity. 4. Gentle Precision:Whisper-quiet operation fosters human-robot collaboration—where sparks fly without deafening roars.
5. Wisdom in Motion:Embedded with a decade of laser mastery, Intelligent learns from every cut, evolving alongside your craft.

Technical Parameter

Machine type

Laser power

Power Source

Working Range

Cutting Speed (Typical)

Repeated Positioning Accuracy

Cooling Mode

Machine Size (L×W×H)

Machine Weight

Robot Axis Number

Minimum Line Width

Supported File Formats

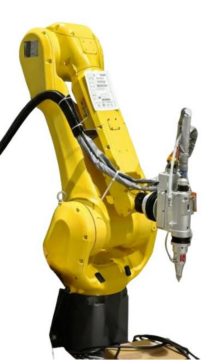

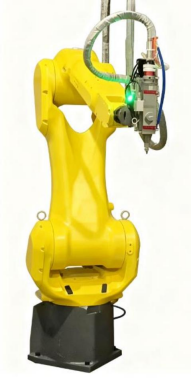

Intelligent Robot Laser Cutting Machine

1000W - 6000W (higher power optional)

Three-phase AC380V ± 10% / 50Hz

Horizontal extension radius: 2000 - 3000mm; Vertical working range: 1500 - 2500mm

Carbon steel (1mm): 10 - 15m/min; Stainless steel (1mm): 8 - 12m/min

≤±0.05mm

Industrial water chiller (10 - 30kW, matched with laser power)

5000 - 6000mm × 3000 - 4000mm × 2500 - 3000mm

2000 - 3500KG

6 axes (supports flexible multi-angle cutting)

0.1mm

DXF, DWG, PLT, AI, BMP

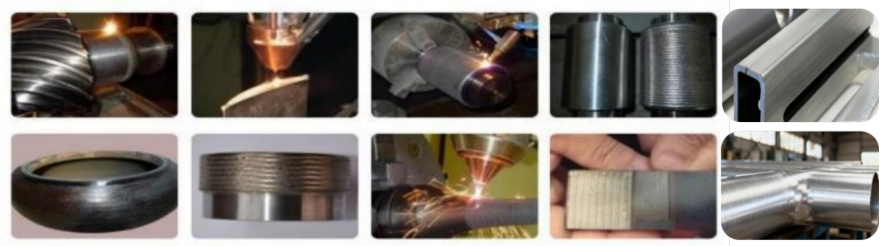

Sample Display
