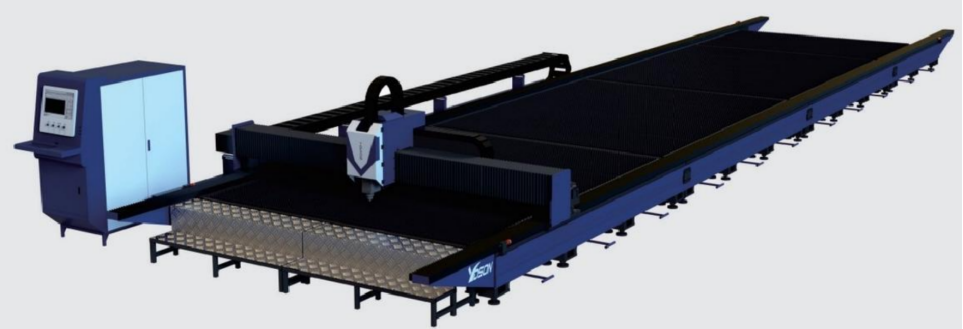

EH1230：LARGE FORMAT LASER CUTTING MACHINE
APPLICATION OF FIBER LASER CUTTING MACHINE
1.Can cut various metal pipes,mainly used for rapid cutting of stainless steel,carbon steel,manganese steel,galvanized steel,various alloy plates,rare metals,and other materials;
2. Widely used in:steel construction,fitness equipment, kitchen appliances,sheetmetal chassis cabinets,mechanical equipment,electricalequipment,lighting hardware,advertising signs,autoparts,display equipment,various metal products, sheet metal cutting and processing industries.

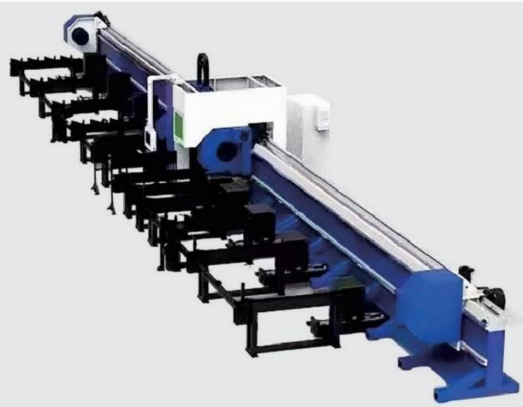

EP5012：HEAVY DUTY FOUR CARD FIBER LASER PIPE CUTTING MACHINE
APPLICATION OF FIBER LASER CUTTING MACHINE
1.Can cut various metal pipes,mainly used for rapid cutting of stainless steel,carbon steel,manganese steel,galvanized steel,various alloy plates,rare metals,and other materials;
2. Widely used in:steel construction,fitness equipment, kitchen appliances,sheetmetal chassis cabinets,mechanical equipment,electricalequipment,lighting hardware,advertising signs,auto parts,display equipment,various metal products, sheet metal cutting and processing industries.
型号Model
加工范围Processing Range
最大运行速度Max ldling Speed
最大加速度MaxAccelerated
X/Y定位精度X/Y Positioning Speed
X/Y重复定位精度XY Repeated Positioning Accuracy
工作电压Power Supply
激光器功率Laser Power
整机功率Machine Gross Power
整机重量Whole Machine Weight
外观尺寸Machine Dimensions
传动方式Transmission
EH1230
12000mm*3000mm
100m/min
1G
士0.05mm
士0.03mm
380V 50HZ
12000W-40000W
<120KVA
11000KG-12000KG
16800*5000*1500mm(以行程12000x3000mm为例)
精密齿条双驱 Precise pinin and rack.dual-drive transmiting
EP5012
12000mm*500mm
120m/min
1.2G
士 0 . 0 3 mm
士0.02mm
380V 50HZ
1500W-12000W
<40KVA
16000KG-18000KG
25000*3000*2000mm (以行程1500 ×3000mm为例)
精密齿条双驱 Precise pinin and rack.dual-drive transmiting
