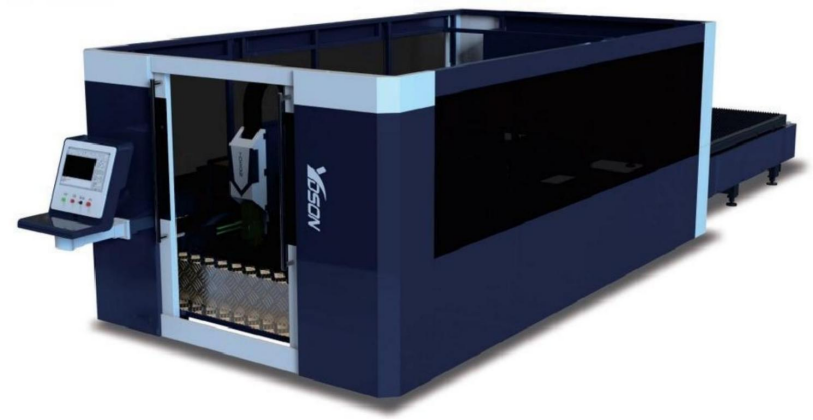

ED3015:LASER CUTTING MACHINE WITH FULL PROTECTIVE COVER

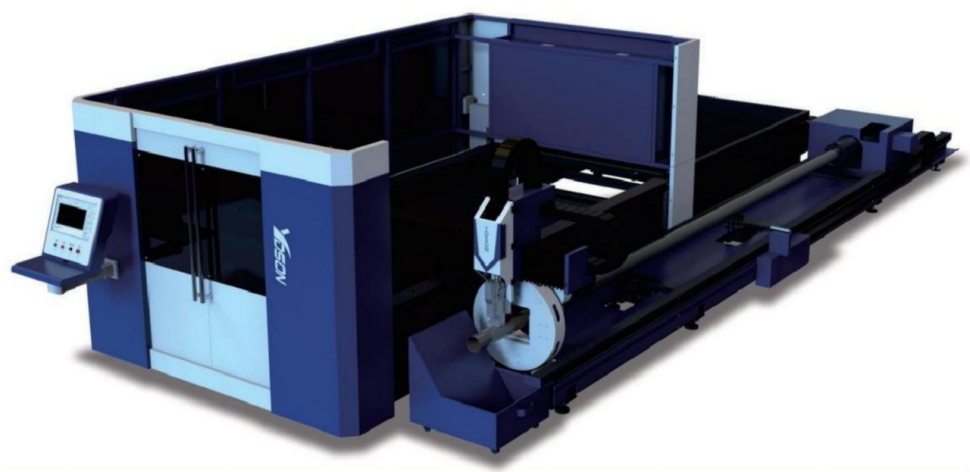

ED3015-P:LASER CUTTING MACHINE FOR SEMI PROTECTIVE PLATE TUBE

FEATURES OF FIBER LASER CUTTING MACHINE

1. Very low cost:cutting all kinds of sheet metal using air;

2.High performance:originally imported fiber laser sources, stable performance;the lifespan can be over 100,000 hours;

3.High cutting speed and efficiency:cutting over 10meters of thin plates perminute;

4.Laser maintenance for free;

5. Smooth and fine edges and surfaces,small distortion, smooth and beautiful outlook;

6.Imported servo motor and gearing system enduring precise cutting;

7. Versatile software enabling various graphical andtextual design;easy,flexible and convenient operation.

APPLICATION OF FIBER LASER CUTTING MACHINE

1.Cutting metal sheets or tubes,mainly for quickly cutting stainless steel,carbon steel,manganese steel,galvanized sheets,alloy sheets,rare metal,etc;

2. Widely used in:steel construction,fitness equipment, kitchen appliances,sheetmetal chassis cabinets,mechanical equipment,electricalequipment,lightinghardware,advertising signs,auto parts,displayequipment,various metal products, sheet metal cutting and processing industries.

SEND MESSAGE

型号Model

加工范围Processing Range

最大运行速度Max ldling Speed

最大加速度MaxAccelerated

X/Y定位精度X/Y Positioning Speed

X/Y重复定位精度XY Repeated Positioning Accuracy

工作电压Power Supply

激光器功率Laser Power

整机功率Machine Gross Power

整机重量Whole Machine Weight

外观尺寸Machine Dimensions

传动方式Transmission

ED3015

3000mm*1500mm/4000mm*2000 mm ,6000mm*2500mm/8000mm*2500 mm

120m/min

1.2G

士0.03mm

士0.02mm

380V50HZ

1500W-12000W

<30KVA

4900KG-5200KG

8700*2600*2000mm (以行程1500x3000mm为例)

精密齿条双驱 Precise pinin and rack.dual-drive transmitin

ED3015-P

888:28m88388mm

120m/min

1.2G

士士0.03mm

士0.02mm

380V50HZ

1500W-12000W

<30KVA

6700KG-7200KG

9800*3500*2000mm (以行程1500x3000mm为例)

精密齿条双驱 Precise pinin and rack.dual-drive transmiting
