Desktop Giant: The Micro-Factory Revolution Starts Here

1. Surgical Precision in Compact Form:Sub-30μm kerf widths and ±5μm repeatability transform tiny tubes and thin sheets into intricate medical and electronic components.
2. Dual-Capability Space Optimizer:Seamlessly switches between precision tube cutting and delicate sheet profiling within one compact footprint - your complete micro-fabrication cell.
3. Intelligent Vision, Effortless Operation:Auto-focusing and material recognition deliver perfect cuts from first piece to last - expertise built into every photon.
4. Material-Agnostic Versatility:From titanium tubes to copper sheets, our agile fiber laser adapts instantly - one system for your entire R&D and small-batch production.
5. Smart Connectivity, Simplified Workflow:IoT-ready design and offline programming turn complex jobs into simple 'load-and-go' operations - making precision accessible to all craftspeople.

Machine type

Processing Surface (Length × Diameter)

X-axis Travel

Y-axis Travel

Z-axis Travel

X/Y-axis Repeat Positioning Accuracy

Maximum Composite Speed

Maximum Acceleration

Laser Power

Pallet Load Capacity

Machine Weight

External Dimensions

CFG3005

200mm×30mm

205mm

85mm

50mm

≤0.02mm

30 m/min

1.0G

150-3000w Optional

≤50KG

800Kg

1300mm×1300mm×1700mm

CFG3006

200mm×60mm

205mm

85mm

50mm

≤0.02mm

30 m/min

1.0G

150-3000w Optional

≤50KG

800Kg

1300mm×1300mm×1700mm

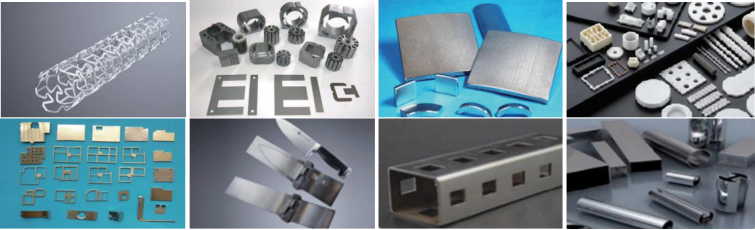

Sample Display
